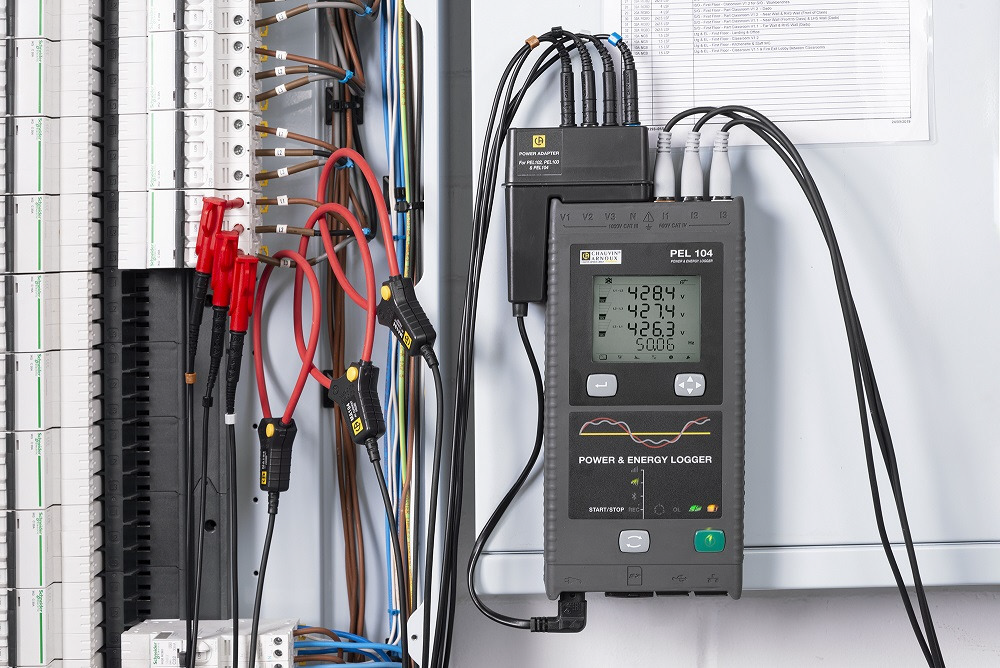

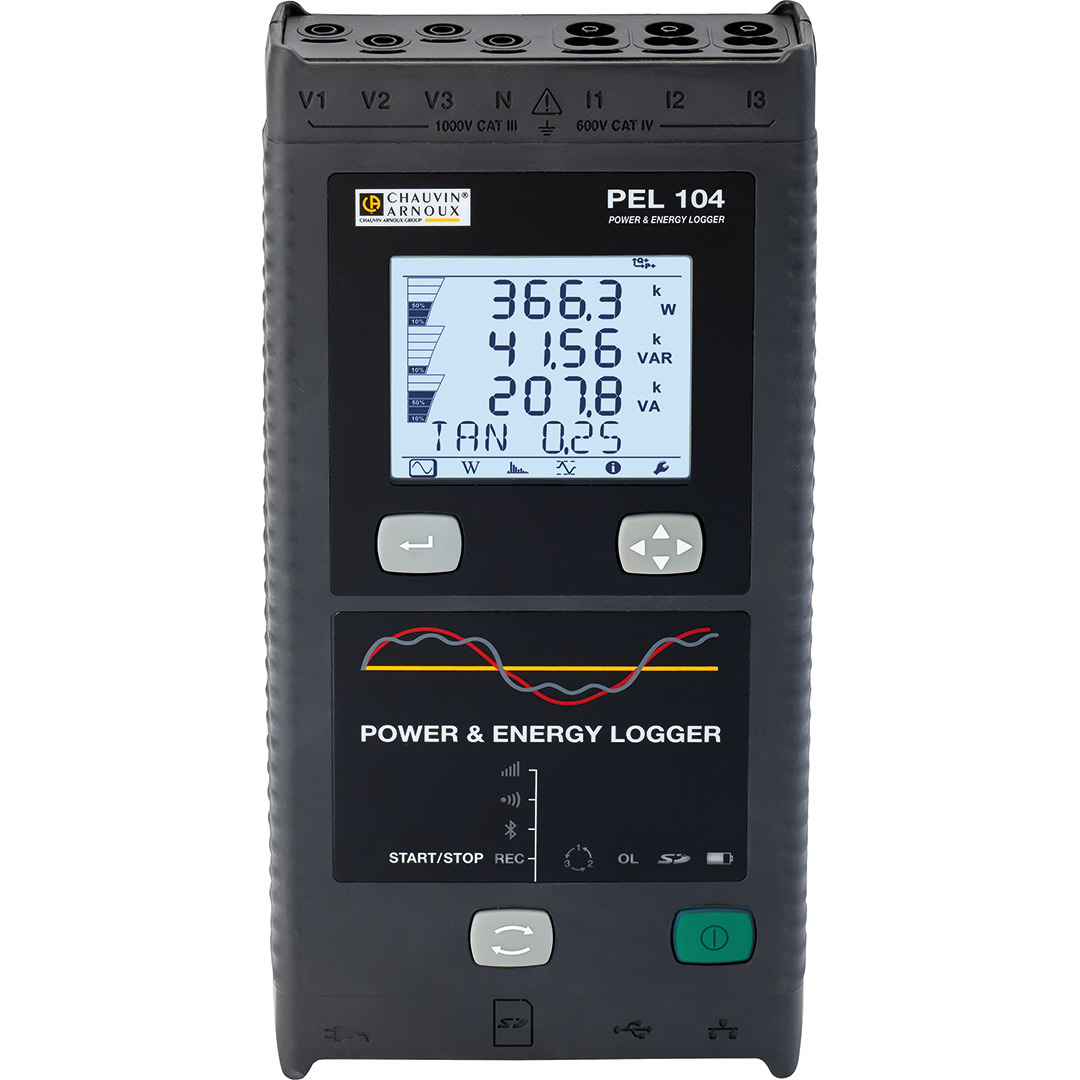

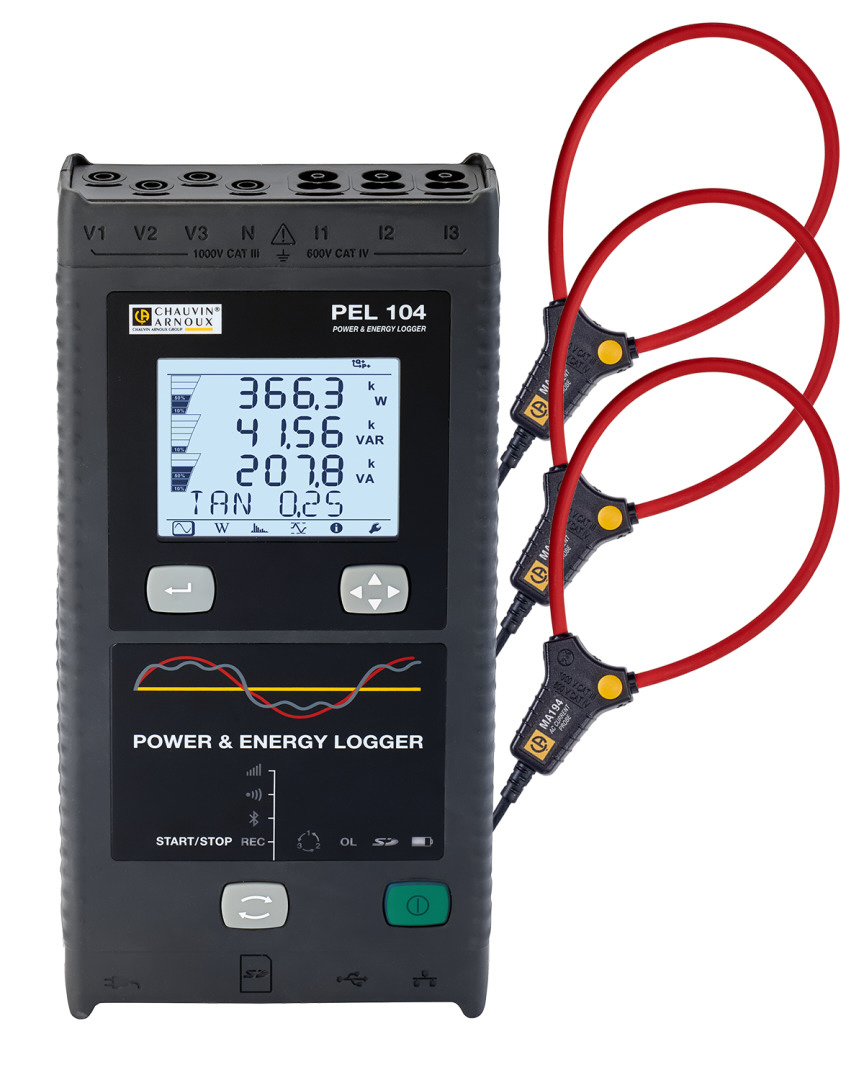

The PEL104 power logger measures and records all the useful data for energy consumption diagnostics. The PEL104 can be used without cutting off the mains power supply.

Highlights:

• Compact magnetized casing,
• Communication via Wifi, GPRS, LAN (Ethernet), Bluetooth and USB
• ANDROID application
• Self-powered via its voltage inputs up to 600 V
• Continuous recording with an interval of 200 ms between measurements
• Measurements as per the IEEE 1459 standard
• 4 voltage inputs and 3 current inputs

Additional specifications:

5 measurements per second, simultaneously on each phase
Active, apparent and reactive power values
Phase: cos phi, tan PHI, PF
Harmonics/THD
IP54
